DUOL-I
Approved single-phase transformers for isolated circuits. The insulation between the primary and secondary windings is always double. DUOL-I series with dual voltage secondary circuit for use of full power for both voltage values. Suitable for the majority of electrical installations with a single transformer for the American and European markets.
Technical data
Power: 30 ÷ 3000 VA
Input voltage: 220 – 480 ± 20V VAC

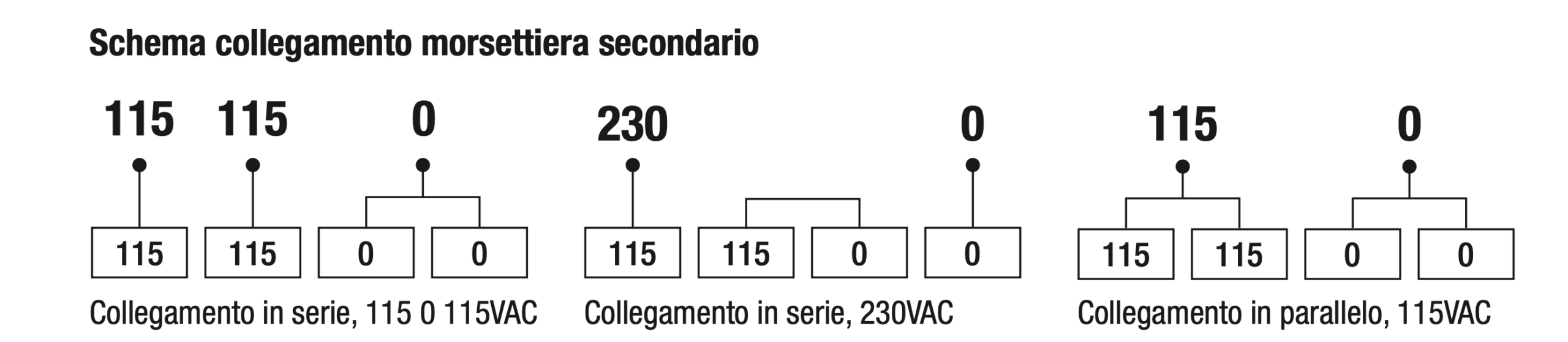

Secondary circuit output voltage: 0 115 and/or 0 230 VAC
Duty cycle: continuous
Frequency: 50/60 Hz
Protection rating: IP 00
Terminal block protection rating: IP 20
Ambient temperature: +40°C MAX
Thermal insulation class: B/130°C ENEC – F/155°C UL
Protection against direct and indirect contact: class I
Winding material: copper
Standards: EN61558-2-4 CSA C22.2 N.66 UL5085
Approvals: cURus File E364320 – ENEC05 – KEMA-KEUR

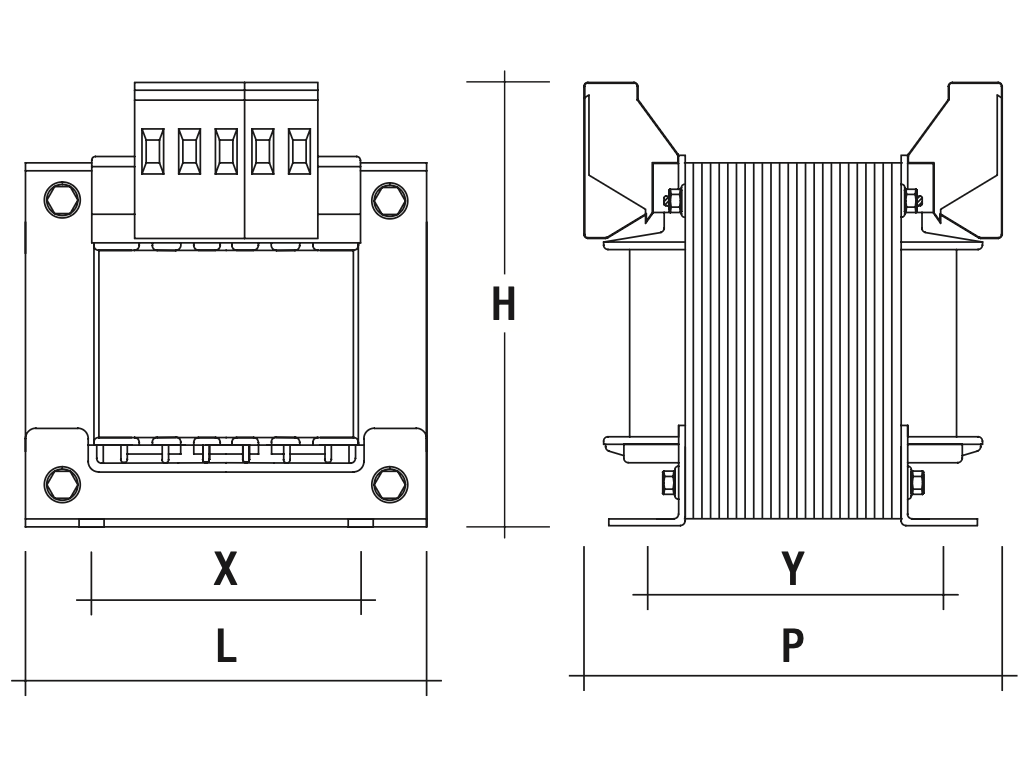

| Code | Power (VA) | Length L (mm) | Depth P (mm) | Height H (mm) | Fixing X | Fixing Y | Weight (Kg) | Losses FE W | Losses CU | Vcc % |
|---|---|---|---|---|---|---|---|---|---|---|
| DUOLI30AE | 30 | 76 | 75 | 85 | 53 | 53 | 1,5 | 8 | 8,6 | 9,5 |
| DUOLI50AE | 50 | 85 | 80 | 90 | 60 | 45 | 1,9 | 9 | 8,4 | 8 |
| DUOLI80AE | 80 | 85 | 90 | 90 | 60 | 65 | 2 | 13 | 8 | 8,3 |
| DUOLI10BE | 100 | 85 | 95 | 90 | 60 | 70 | 2,2 | 14 | 7,8 | 8,5 |
| DUOLI15BE | 150 | 97 | 90 | 98 | 68 | 72 | 2,8 | 17 | 6 | 6,5 |
| DUOLI20BE | 200 | 97 | 100 | 98 | 68 | 87 | 4 | 23 | 5,8 | 5 |
| DUOLI25BE | 250 | 120 | 95 | 130 | 80 | 77 | 4,5 | 25 | 6 | 5,5 |
| DUOLI30BE | 300 | 120 | 100 | 130 | 80 | 83 | 5,5 | 30 | 6,3 | 5,2 |
| DUOLI40BE | 400 | 120 | 110 | 130 | 80 | 93 | 7,5 | 35 | 4,8 | 5 |
| DUOLI50BE | 500 | 135 | 117 | 140 | 90 | 88 | 8 | 40 | 5,5 | 4,4 |
| DUOLI60BE | 600 | 150 | 120 | 155 | 105 | 90 | 10 | 48 | 4 | 3,8 |
| DUOLI80BE | 800 | 150 | 130 | 155 | 105 | 100 | 11,5 | 50 | 3,8 | 3,5 |
| DUOLI10CE | 1000 | 150 | 140 | 155 | 105 | 110 | 13 | 58 | 3 | 3,2 |
| DUOLI16CE | 1600 | 180 | 145 | 180 | 128 | 110 | 16 | 85 | 3,1 | 3,8 |
| DUOLI20CE | 2000 | 193 | 170 | 190 | 135 | 135 | 25 | 110 | 2 | 2,8 |
| DUOLI25CE | 2500 | 193 | 180 | 190 | 135 | 145 | 27 | 130 | 1,9 | 2,6 |
| DUOLI30CE | 3000 | 193 | 200 | 190 | 135 | 165 | 30 | 160 | 1,5 | 2,3 |
