TMUL
Approved single-phase transformers for safety and isolation circuits. The insulation between primary and secondary windings is always double and reinforced. TMUL series units are manufactured on demand for general uses on the American and European markets.
Technical data
Power: 30 ÷ 3000 VA
Input voltage: 100 ÷ 600 VAC
Secondary circuit output voltage: 12 ÷ 400 VAC
Duty cycle: continuous
Frequency: 50/60 Hz
Protection rating: IP 00
Terminal block protection rating: IP 20
Ambient temperature: +40°C MAX
Thermal insulation class: B/130°C ENEC – F/155°C UL
Protection against direct and indirect contact: class I
Winding material: copper
Standards: EN61558-2-4 EN61558-2-6 CSA C22.2 N.66 UL5085
Approvals: cURus fi le E364320 – ENEC05 – KEMA-KEUR – EAC
Optional accessories
- Terminal blocks with fuse-holder
- Protection thermal switches
- Electrostatic shield

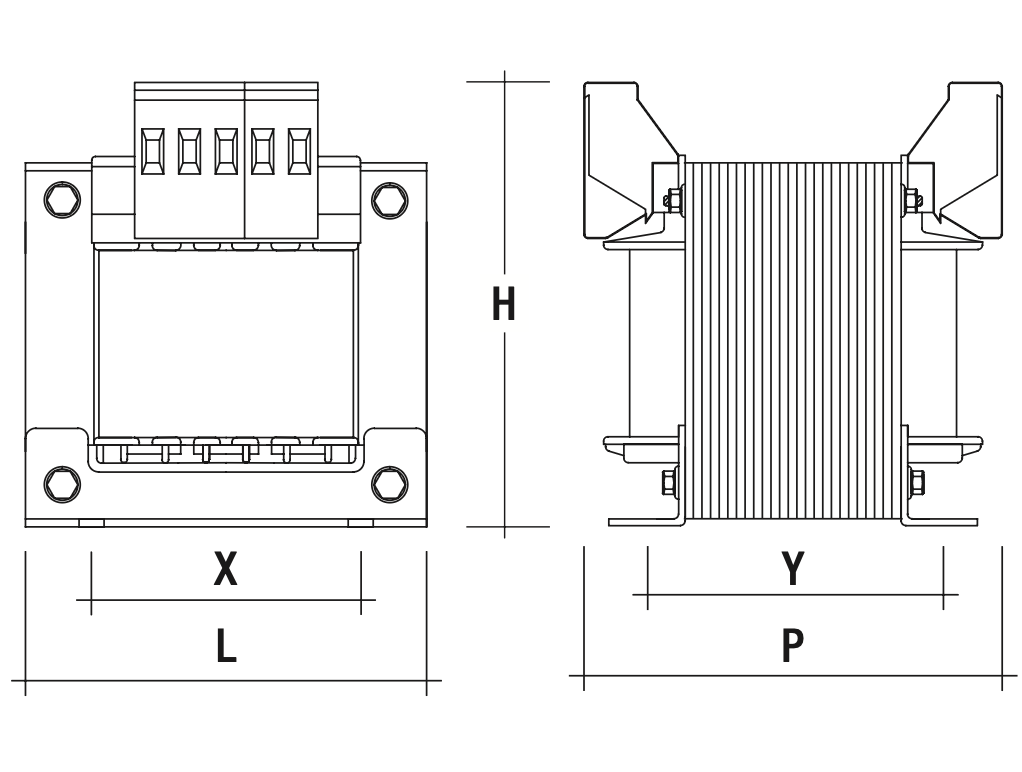

| Code | Power (VA) | Length L (mm) | Depth P (mm) | Height H (mm) | Fixing X | Fixing Y | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| TMUL03AXXX | 30 | 76 | 75 | 85 | 53 | 53 | 1,5 |
| TMUL04AXXX | 40 | 76 | 75 | 85 | 53 | 53 | 1,5 |
| TMUL045XXX | 45 | 76 | 80 | 85 | 53 | 58 | 1,5 |
| TMUL05AXXX | 50 | 85 | 80 | 90 | 60 | 45 | 1,9 |
| TMUL063XXX | 63 | 85 | 85 | 90 | 60 | 50 | 1,9 |
| TMUL08AXXX | 80 | 85 | 90 | 90 | 60 | 65 | 2 |
| TMUL10AXXX | 100 | 85 | 95 | 90 | 60 | 70 | 2,2 |
| TMUL15AXXX | 150 | 97 | 90 | 98 | 68 | 72 | 2,8 |
| TMUL16AXXX | 160 | 97 | 90 | 98 | 68 | 77 | 3,5 |
| TMUL20AXXX | 200 | 97 | 100 | 98 | 68 | 87 | 4 |
| TMUL25AXXX | 250 | 120 | 95 | 130 | 80 | 77 | 4,5 |
| TMUL30AXXX | 300 | 120 | 100 | 130 | 80 | 83 | 5,5 |
| TMUL40AXXX | 400 | 120 | 110 | 130 | 80 | 93 | 7,5 |
| TMUL45AXXX | 450 | 120 | 110 | 130 | 80 | 93 | 7,5 |
| TMUL50AXXX | 500 | 135 | 117 | 140 | 90 | 88 | 8 |
| TMUL55AXXX | 550 | 135 | 117 | 140 | 90 | 88 | 8 |
| TMUL60AXXX | 600 | 150 | 120 | 155 | 105 | 90 | 10 |
| TMUL63AXXX | 630 | 150 | 120 | 155 | 105 | 90 | 10 |
| TMUL70AXXX | 700 | 150 | 120 | 155 | 105 | 90 | 10 |
| TMUL80AXXX | 800 | 150 | 130 | 155 | 105 | 100 | 11,5 |
| TMUL10BXXX | 1000 | 150 | 140 | 155 | 105 | 110 | 13 |
| TMUL15BXXX | 1500 | 180 | 145 | 180 | 128 | 110 | 16 |
| TMUL16BXXX | 1600 | 180 | 145 | 180 | 128 | 110 | 16 |
| TMUL18BXXX | 1800 | 193 | 160 | 190 | 135 | 125 | 23 |
| TMUL20BXXX | 2000 | 193 | 170 | 190 | 135 | 135 | 25 |
| TMUL25BXXX | 2500 | 193 | 180 | 190 | 135 | 145 | 27 |
| TMUL30BXXX | 3000 | 193 | 200 | 190 | 135 | 165 | 30 |
| TMUL35BXXX | 3500 | 193 | 210 | 190 | 135 | 175 | 33 |
